CAD$5,481.39

Hedén™ YMER Lens Control System

SKU: PLC960-0031
size: 14.00 W × 7.00 H × 12.00 L
product.weight: 8.00 LBS
Shipping Cost: Calculated at Checkout
Add-on Motors

YMER-1 Base System Handset and Receiver with no motors



YMER-1 with LenSaver Calibration™

  • The Hedén YMER-1 with LenSaver Calibration™ (patent pending) is a wireless focus or iris control system with an optional wired zoom control through LANC.
  • LenSaver Calibration™ is a unique new way of calibrating a follow focus system, just press the calibration button and move the lens by hand from end-stop to end-stop then press the button again, that’s it. LenSaver Calibration™ is easy, safe and fast.
  • Manual Override™ makes it possible to take manual control of the lens without jeopardizing calibration.
  • Wireless transmission up to 500 meters (1640 feet) line of sight. Small with incredibly intuitive controls and unique features.

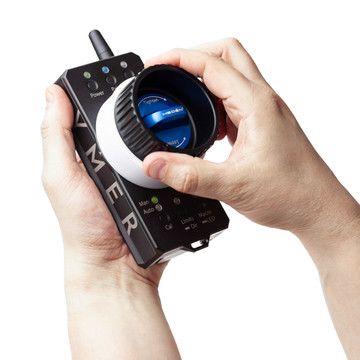

  • Smooth rotary movements of the control knob with adjustable resistance give you a haptic connection with total control of the lenses movements. Adjustable limit points for easy focus from A to B and precision mode for super fine control over an adjustable range.
  • One press on the camera run button starts and stops recording from a distance.
  • Mounting points on the transmitter makes it easy to attach other devices.

Unique features of YMER-1

  • LenSaver Calibration™ (patent pending) is a new and unique way of calibrating a follow focus system – very quick and without risk of damaging delicate lenses or lenses without end-stops.
  • Extremely smooth knob movements with adjustable knob resistance.
  • Fast and accurate responsiveness and high motor speed.
  • Manual Override™ – the DP or Camera Operator can take manual control of the lens from the focus puller
  • Unique 1+1 receiver – one channel wireless and one channel wired through LANC to control zoom or iris with a wired control together with the wireless focus
  • Wired LANC control integrated with the Smartgrip™ on Sony™ FS5/FS7 or 3:rd party LANC controllers
  • Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market
  • Easy replaceable standard Sony battery with long operational life (not included)

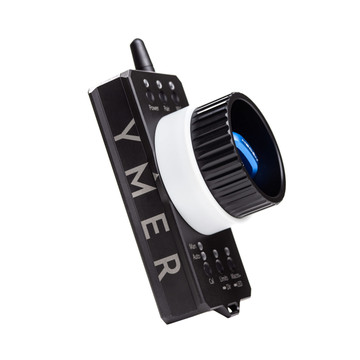

Specifications (YMER-1 Transmitter):

  • Length (ex antenna): 152mm / 6” (incl. antenna): 185mm / 7.3”
  • Height (ex control knob): 37mm / 1.45” (incl. control knob): 80mm / 3.15”
  • Width: 76mm / 3”
  • Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market.

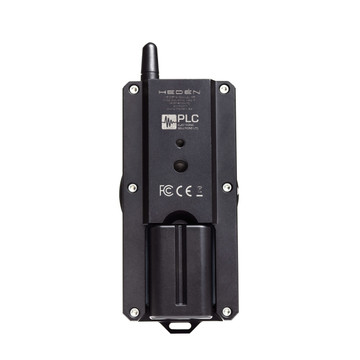

  • Power source: Sony NP-FM500H compatible battery (not included)

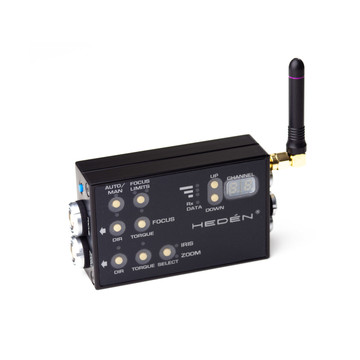

Specifications (YMER 1+1 Reciever):

  • Drives up to two Hedén motors
  • One channel wireless and one channel wired through LANC
  • Length (ex antenna): 100mm / 4”
  • Height: 26mm / 1”
  • Width: 54mm / 2”
  • Weight: Approx. 180 gr / 6.4 oz
  • Works with Hedén motors M21VE-L, M26VE, VM35, LM30 and CM55
  • Range (Indoors): Approx. 15 – 100 meters (50-330 feet) depending on building materials, interference and other obstacles (Line of sight):
  • 500 meters (1650 feet)
  • Power source: 14.4V PTAP

Specifications (Cables):
Motor cable:

  • 7 pin Std. male Connectors at both sides
  • 60 cm (23.6”) long.

Power cable:

  • Std. 2 pin male connector to PTAP male at the other side
  • 60 cm (23.6”) long.

The system contains the following:

  • 1 x YMER-1 transmitter
  • 1 x YMER 1+1 receiver
  • 1 x White scale ring
  • 1 x Power cable
  • 1 x Hedén neck strap
  • Optional - 1 x Primary Motor (Choice of M21VE-L, M26VE, or LM30) w/ Motor Cable
  • Optional - 1 x Secondary Motor (Choice of M21VE-L, M26VE, LM30 or VM35) w/ Motor Cable

***Sony NP-FM500H compatible battery and charger not included in package***
